DDP insulation paper

Diamond Dotted Paper For Distribution Transformer
In accordance with GB/T5591.3.1-2008

Product Features
1. Unique diamond lattice coating:
DDP diamond lattice dispensing paper forms a unique insulating structure by coating special modified epoxy resin in diamond lattice shape on high performance insulating paper. This structure not only improves the insulating properties, but also promotes the oil immersion and gas discharge from the insulating material, effectively avoiding the occurrence of corona and local discharge phenomena.
2. Excellent insulating properties:
Special modified epoxy resin has good insulating properties, which can ensure that DDP diamond lattice dispensing paper maintains a stable insulation effect under high-voltage environment, preventing current leakage and short-circuit phenomena.
3. Reliable adhesion:
In the process of use, the coating layer of DDP diamond lattice dispensing paper will begin to melt at a certain temperature and produce adhesion. As the temperature rises, the coating layer will begin to solidify again, so that the adjacent layers of the winding are reliably bonded into a fixed unit. This adhesion enhances the stability and durability of the insulation structure.
4. Good heat resistance:
DDP diamond lattice dispensing paper is able to maintain stable performance in high-temperature environments and is not susceptible to aging and failure. This characteristic makes it especially suitable for electrical equipment that needs to withstand high temperatures, such as oil-immersed power transformers.
5. Environmental protection:
DDP diamond lattice dispensing paper meets the requirements of environmental protection in the production and use process, does not contain harmful substances, harmless to the environment and human health.

Description:
Diamond Dotted Insulation Paper is also called DDP. It is produced by coating modified epoxy-resin in diamond-dotted patterns on electrical insulating paper, the epoxy adhesive is applied to both sides of the paper in a diamond pattern consisting of 9.5mm x 9.5mm diamonds with 15.9mm center spacing. This Design improves the mechanical strength of oil-immersed transformer winding without reducing partial discharge levels. Due to the use of epoxy-resin, this diamond dotted insulation paper is also commonly referred to as  epoxy diamond dotted paper.

Advantage:
In the process of coil desiccation, the coated epoxy-resin would be melted in a certain temperature and become adhesive. With the temperature increased, the melted resin would cure to C-stage, and firmly adhere each adjoining layer of the coil, thus forming a winding section. If a short circuit occurs in the coil, the resin bond strength would sufficiently prevent the displacement of each winding layer, which ensures the long-term mechanical and physical properties of the insulation structure. As the resin coating distributes in a diamond-dotted pattern, little quantity of the resin would soak into the insulating paper during the melting and curing process, which ensures the elimination of air content in the insulating paper and guarantees the soakage of oil, minimizing the damages of corona and partial discharge.

Applications:

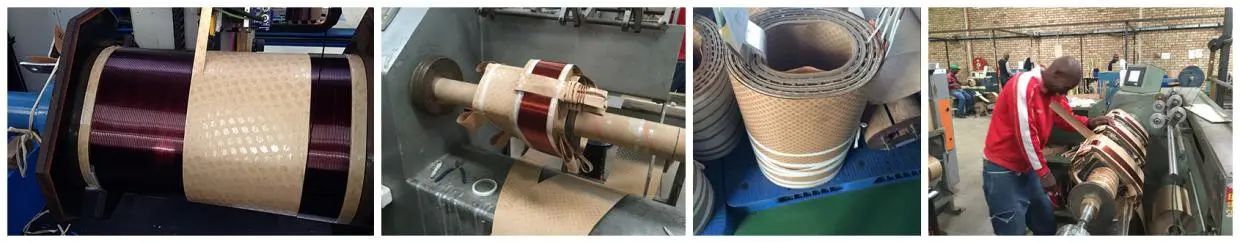

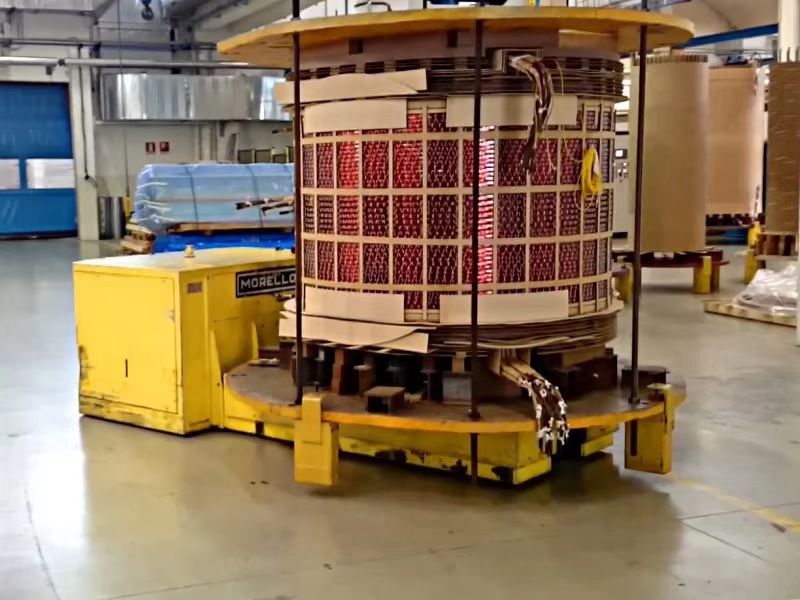

Diamond dotted paper is suitable for turn-to-turn insulation of coil wires on oil-immersed power transformers and suitable for layer insulation of coils on distribution transformers.

Who is Hechin?
We are a factory, supplier, and manufacturer integrating R&D, production, and sales. Since 2005, we specialize in all kinds of insulating materials for liquid and cast resin transformers and motors. Thanks to the complete range of insulation products and custom system, you can enjoy convenient, high-quality one-stop bulk purchasing at Hechin.

We introduce raw materials from well-known brands to ensure high quality, high stability, and high safety. After 17 years of development, we have established cooperative relationships with many world brands, such as WEG, CG, ABB, HYOSUNG, HYUNDAI, and LSIS. Our goal is to achieve a global footprint. Expect to work with you!


 ﹥﹥1  DDP Technical Data
﹥﹥2 Curing conduction stock
2.1 Curing: 90℃±2 ℃／3h firstly , then130℃±5℃/6h,  or according customer needs
2.2 Storage: ≤40℃, dry, clean in warehouse. Avoid fire, heat and sunlight.
2.3 Storage life: 12 months. Still effective if qualified in retest after 12 months.

Epoxy Diamond Dotted Paper Features:
1. 100% long fiber wood pulp
2. High purity and good Electrical strength
3. Epoxy resin one or both sides
4. Guaranteed no broken
5. Great tension
6. Insulation class A according to IEC

DDP packing:

Why choose us:
1，Factory Direct Sales
2，High quality epoxy resin
3，Good bonding strength

FAQ:
Q1:What is the payment term?
A: 100% T/T or 30% in advance, balance before loading.
Q2:What is the shipping port?
A:Shanghai Port, Ningbo Port
Q3:What is the delivery time?
A: 10 ~ 25 working days depend on orders
Q4:What is the quality level of your product?
A: International Standard - IEC
Q5. Are you factory or a trading company ?
A: Factory, We have more than 17 years experience in producing insulation materials
Q6: when did you found ?
A:  In 2005
Q7: How many employee in your company ?
A: Around 50~100
Q8: Where is your factory located? How can I visit there?
A: Our factory is located in YongKang, Zhejiang provience.
Q9: Which Diamond dotted paper DDP certification do you have?
The plant has passed the certificate of ISO 9001 quality system certification;
The insulation system has been got SDS Report
Q10: Can I get samples for free?
A: yes sure, free samples, customer pay shipping.
appliance：
